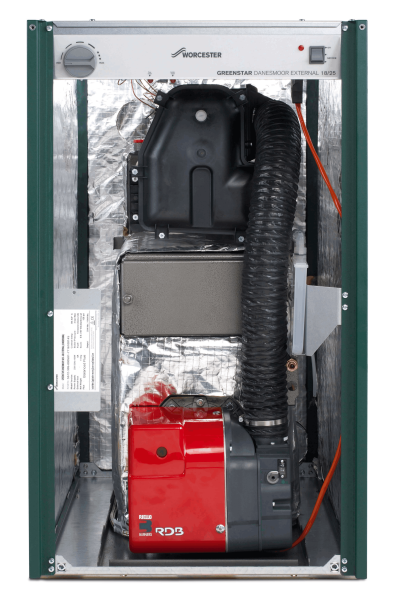

Greenstar Danesmoor External overview

Our Greenstar Danesmoor External is part of a market leading range of oil regular boilers with outputs up to 32kW.

Suitable for small, medium and large sized properties, this boiler features a robust weatherproof cabinet and a one piece stainless steel primary baffle and cross firing burner.

The appliance can be used with our range of high efficiency Greenstore cylinders.

Standard Guarantee

  • 2 Year

With any Greenstar System Filter

  • 5 Year

With any Greenstar System Filter + £150 (Non-WAI Excelerate members only)*

  • 7 year

*Available to Excelerate members only. Non-WAI’s can achieve this extended guarantee length with an additional payment of £150. Terms and conditions apply.

Download our easy guide, which covers everything you need to know about the Danesmoor External Regular

Features & Benefits

Cross firing burner
One piece baffle for quick and easy servicing
Easy access oil and hydraulic connections
Accepts a 30°C return temperature making the appliance perfect for modern heating designs
Lightweight aiding installation
Compatible with solar thermal
5 year guarantee on Worcester primary heat exchanger
10 year guarantee on the plate heat exchanger
80/125mm room sealed flues with lengths of up to 8m available
Plume management of up to 5m with conventional and flexi-flue kits also available

Technical Details

Greenstar Danesmoor External 12/18 Greenstar Danesmoor External 18/25 Greenstar Danesmoor External 25/32
Part number 7 731 600 149 7 731 600 153 7 731 600 157
ErP Efficiency Rating
A

A

A

ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
Control Options
EasyControl Compatible
Solar Compatible
Central heating output (kW) 18 25 32
Dimensions (mm) height x width x depth 950 x 565 x 780 950 x 565 x 780 950 x 565 x 780
Clearances (mm) above, sides, below and front (H) 600 x (W) Refer to Installation Manual x (D) 600 (H) 600 x (W) Refer to Installation Manual x (D) 600 (H) 600 x (W) Refer to Installation Manual x (D) 600
Show more

Related Accessories

Boiler Accessories Part number
CondenseSure 7 716 192 746
EasyControl Adapter 7 736 701 560 Installation Manual
Flue Part number
90º flue bend 7 716 190 034
Stainless steel flue terminal guard 7 716 190 050
Plume Part number
Plume management kit 7 716 190 092
Plume management 45º bend 7 716 190 094
Plume management 90º bend 7 716 190 095
1,000mm extension 7 716 190 093
