Greenstar Danesmoor External System overview

Our Greenstar Danesmoor External System is part of a market leading range of oil boilers with outputs up to 32kW.

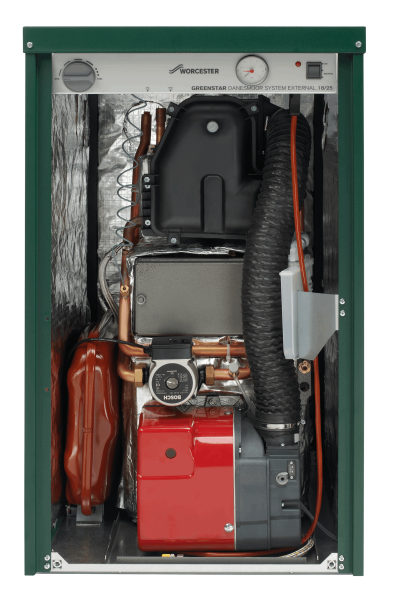

Suitable for small, medium and large sized properties, this boiler features a robust weatherproof cabinet and a one piece stainless steel primary baffle and cross firing burner.

The appliance can be used with our range of high efficiency Greenstore cylinders.

Download our easy guide, which covers everything you need to know about the Danesmoor External System

Features & Benefits

Cross firing burner
One piece baffle for quick and easy servicing
Easy access oil and hydraulic connections
Accepts a 30°C return temperature making the appliance perfect for modern heating designs
Lightweight aiding installation

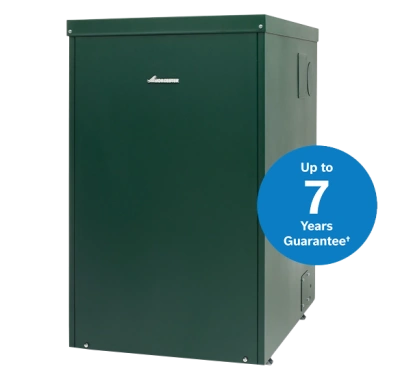

A robust, durable external cabinet that blends in with the garden
IP45 Protection – protecting the boiler from water, dust and external elements
5 year guarantee on Worcester primary heat exchanger
10 year guarantee on the plate heat exchanger
80/125mm room sealed flues with lengths of up to 8m available
Plume management of up to 5m with conventional and flexi-flue kits also available

Technical Details

Greenstar Danesmoor External System 12/18 Greenstar Danesmoor External System 18/25 Greenstar Danesmoor External System 25/32
Part number 7 731 600 150 7 731 600 154 7 731 600 158
ErP Efficiency Rating
A

A

A

ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
Control Options
EasyControl Compatible
Solar Compatible
Central heating output (kW) 18 25 32
Dimensions (mm) height x width x depth 950 x 565 x 780 950 x 565 x 780 950 x 565 x 780
Clearances (mm) above, sides, below and front (H) 600 x (W) Refer to Installation Manual x (D) 600 (H) 600 x (W) Refer to Installation Manual x (D) 600 (H) 600 x (W) Refer to Installation Manual x (D) 600
Show more

Related Accessories

Boiler Accessories Part number
CondenseSure 7 716 192 746
Flue Part number
90º flue bend 7 716 190 034 Installation Manual
Stainless steel flue terminal guard 7 716 190 050
Plume Part number
Plume management kit 7 716 190 092
Plume management 45º bend 7 716 190 094
Plume management 90º bend 7 716 190 095
1,000mm extension 7 716 190 093
