Download ErP Data Sheet

This efficiency rating icon is for a product within a range of products. View all products in this range

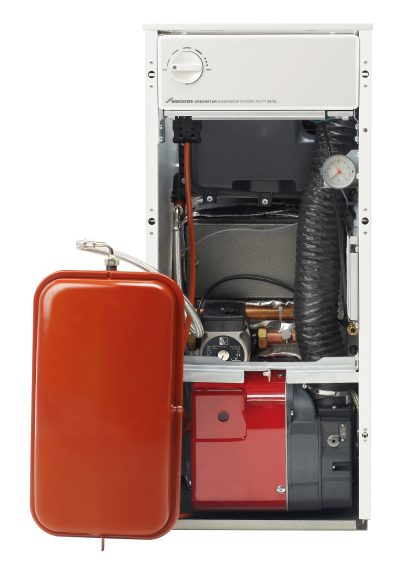

Greenstar Danesmoor System Utility overview

Our Greenstar Danesmoor System Utility is part of a market leading range of oil boilers with outputs up to 32kW.

Suitable in both kitchens and utility rooms for small, medium and large sized homes, this boiler has been inspired by your feedback and features an easy to remove one-piece primary baffle and cross firing burner.

The appliance can be used with our range of high efficiency Greenstore cylinders.

Download our easy guide, which covers everything you need to know about the Danesmoor System Utility

Features & Benefits

Cross firing burner
One piece baffle for quick and easy servicing
Easy access oil and hydraulic connections
Accepts a 30°C return temperature making the appliance perfect for modern heating designs
Lightweight aiding installation
Compatible with solar thermal
5 year guarantee on Worcester primary heat exchanger
10 year guarantee on the plate heat exchanger
80/125mm room sealed flues with lengths of up to 8m available
Plume management of up to 5m with conventional and flexi-flue kits also available

Technical Details

Greenstar Danesmoor System Utility 12/18 Greenstar Danesmoor System Utility 18/25 Greenstar Danesmoor System Utility 25/32
Part number 7 731 600 148 7 731 600 152 7 731 600 156
ErP Efficiency Rating
A

A

A

ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
Control Options
EasyControl Compatible
Solar Compatible
Central heating output (kW) 18 25 32
Dimensions (mm) height x width x depth 855 x 370 x 600 855 x 370 x 600 855 x 370 x 600
Clearances (mm) above, sides, below and front 300 x 5 x 600 300 x 5 x 600 300 x 5 x 600
Show more

Related Accessories

Boiler Accessories Part number
CondenseSure 7 716 192 746
EasyControl Adapter 7 736 701 560
Flue Part number
1000mm extension kit, 100mm dia 7 716 190 066
45º bend, 100mm dia 7 716 190 069
45º bend, 80/125mm 7 716 190 035 Installation Manual
500mm extension kit, 100mm dia 7 716 190 067
90º flue bend 7 716 190 034 Installation Manual
Flue extension, 80/125mm 7 716 190 033 Installation Manual
Greenstar Oilfit 100mm flexible flue kit, 12m 7 716 190 077
Greenstar Oilfit 100mm flexible flue kit, 8m 7 716 190 076
Flue Damper 7 716 190 101
Stainless steel flue terminal guard 7 716 190 050
Telescopic extension 100mm dia 7 716 190 068
Conventional flue adaptor (100/130) 7 716 190 065 Installation Manual
80/125 standard telescopic flue kit 7 716 190 064 Installation Manual
80/125 short telescopic flue kit 7 716 190 062 Installation Manual
Wall cover plate kit 100mm dia. 7 716 190 074
Support bracket kit (125mm dia.) 7 716 191 174
600mm extension 7 716 190 097
Conventional vertical flue kit, 100/103mm 7 716 190 104
Infill Plate Kit (for high level horizontal flues) 7 716 191 105
Infill plate kit (for high level horizontal flues) 7 716 190 105
Infill plate kit (for high level horizontal flues) 7 716 191 185
Plume Part number
Plume management kit 7 716 190 092
Plume management 45º bend 7 716 190 094
Plume management 90º bend 7 716 190 095
1,000mm extension 7 716 190 093
