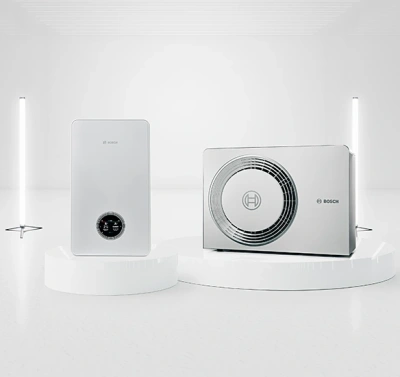

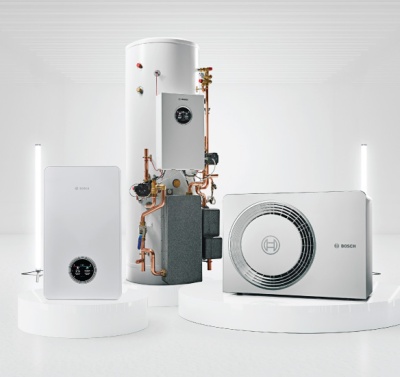

Compress 5800i AW Professional

Compress 5800i AW overview

Introducing our all-new highest performing, more compact and easier to install heat pump that's ultra quiet and easier on the eye. A complete system solution tailored for UK installers.

Designed for UK homes, the brand new CS5800i range is designed for new build and renovation projects alike – making it easier than ever to bring responsible heating solutions to your customers.

Dimensions:

Outdoor unit: 800mm H x 1100mm W x 540mm D
Indoor unit: 700mm H x 400mm W x 290mm D
Slimline Cylinder (180l):1708mm H x 653mm W x 645mm D
Standard Cylinders:
210l - 1561mm H x 674mm W x 747mm D
250l - 1806mm H x 674mm W x 747mm D

ERP Labels:

ERP Datasheets:

Click here to generate individual ErP product and system labels for this and other products in our range - including Hybrid solutions!

Features & Benefits

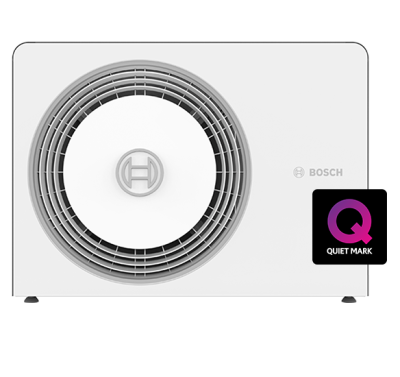

Ultra quiet with integrated diffuser	F-Gas free fitting with rear facing connectors and monobloc design for easy and quicker installations.	High performance flow temperatures up to 75°C for wider range of UK homes & SCOP up to 4.65
Greener R290 refrigerant has a low global warming potential score of only 3	Sleek new design that will compliment its surrounds with all the style and maximum reliability you’ve come to expect from Bosch.	Easy install 'plug and play' indoor solution is designed with installers in mind for faster installation with integrated micro-buffer, diverter valves, pumps and back-up heater
Ability to use third-party cylinders and components

Technical details

CS5800iAW 4 OR-S

Energy Efficiency Class (35°C): A+++
Energy Efficiency Class (55°C): A++
Water Heating Efficiency Class: N/A
Water Heating Declared Load Profile: N/A
Heating Power at A2 / W35: 4.31
Coefficient of Performance (COP) at +7 / W35: 3.59
Sound pressure level at a distance of 1 m dB(A): 32
Sound Power Level Outdoors (dBA): 40
Maximum temperature of flow (heat pump only): 75
Heating Power at A7 / W35: 4.99
Seasonal space heating energy efficiency ηS% (35°C): 180
Seasonal space heating energy efficiency ηS% (55°C): N/A
Seasonal space heating energy efficiency ηS% (55°C with supplied temperature control): N/A
Seasonal Coefficient of Performance (SCOP) (35°C): 4.58
Seasonal Coefficient of Performance (SCOP) (55°C): 3.32
Seasonal Coefficient of Performance (SCOP) (55°C with supplied temperature control): N/A
Fuse rating for supplying the heat pump directly via the building connection: 16
Seasonal water heating energy efficiency ηwh% (average climate): N/A
Combination Indoor unit: N/A
Integral Stainless Steel Tank Capacity (litres): N/A
Standby heatloss (kWh/24h): N/A
Working outdoor temperature range (Heating): -23 to +45
Compressor type: Rotary
Electric booster heater (standard): 1
Pump type PCO: U30-10
Clearances of Outdoor unit (Front/Side/Back) mm: 2000/1000/400
Clearances of Outdoor unit - with acoustic hood (Front/Side/Back) mm: N/A
Temperature controller (weather compensation supplied): 1
Refrigerant Type: R290
Refrigerant Charge (kg): 0.95

CS5800iAW 5 OR-S

Energy Efficiency Class (35°C): A+++
Energy Efficiency Class (55°C): A++
Water Heating Efficiency Class: N/A
Water Heating Declared Load Profile: N/A
Heating Power at A2 / W35: 6.43
Coefficient of Performance (COP) at +7 / W35: 3.16
Sound pressure level at a distance of 1 m dB(A): 34
Sound Power Level Outdoors (dBA): 42
Maximum temperature of flow (heat pump only): 75
Heating Power at A7 / W35: 6.8
Seasonal space heating energy efficiency ηS% (35°C): 180
Seasonal space heating energy efficiency ηS% (55°C): N/A
Seasonal space heating energy efficiency ηS% (55°C with supplied temperature control): N/A
Seasonal Coefficient of Performance (SCOP) (35°C): 4.65
Seasonal Coefficient of Performance (SCOP) (55°C): 3.5
Seasonal Coefficient of Performance (SCOP) (55°C with supplied temperature control): N/A
Fuse rating for supplying the heat pump directly via the building connection: 16
Seasonal water heating energy efficiency ηwh% (average climate): N/A
Combination Indoor unit: N/A
Integral Stainless Steel Tank Capacity (litres): N/A
Standby heatloss (kWh/24h): N/A
Working outdoor temperature range (Heating): -23 to +45
Compressor type: Rotary
Electric booster heater (standard): 1
Pump type PCO: U30-10
Clearances of Outdoor unit (Front/Side/Back) mm: 2000/1000/400
Clearances of Outdoor unit - with acoustic hood (Front/Side/Back) mm: N/A
Temperature controller (weather compensation supplied): 1
Refrigerant Type: R290
Refrigerant Charge (kg): 0.95

CS5800iAW 7 OR-S

Energy Efficiency Class (35°C): A+++
Energy Efficiency Class (55°C): A++
Water Heating Efficiency Class: N/A
Water Heating Declared Load Profile: N/A
Heating Power at A2 / W35: 7.09
Coefficient of Performance (COP) at +7 / W35: 3.07
Sound pressure level at a distance of 1 m dB(A): 34
Sound Power Level Outdoors (dBA): 42
Maximum temperature of flow (heat pump only): 75
Heating Power at A7 / W35: 7.97
Seasonal space heating energy efficiency ηS% (35°C): 180
Seasonal space heating energy efficiency ηS% (55°C): N/A
Seasonal space heating energy efficiency ηS% (55°C with supplied temperature control): N/A
Seasonal Coefficient of Performance (SCOP) (35°C): 4.58
Seasonal Coefficient of Performance (SCOP) (55°C): 3.52
Seasonal Coefficient of Performance (SCOP) (55°C with supplied temperature control): N/A
Fuse rating for supplying the heat pump directly via the building connection: 16
Seasonal water heating energy efficiency ηwh% (average climate): N/A
Combination Indoor unit: N/A
Integral Stainless Steel Tank Capacity (litres): N/A
Standby heatloss (kWh/24h): N/A
Working outdoor temperature range (Heating): -23 to +45
Compressor type: Rotary
Electric booster heater (standard): 1
Pump type PCO: U30-10
Clearances of Outdoor unit (Front/Side/Back) mm: 2000/1000/400
Clearances of Outdoor unit - with acoustic hood (Front/Side/Back) mm: N/A
Temperature controller (weather compensation supplied): 1
Refrigerant Type: R290
Refrigerant Charge (kg): 0.95
