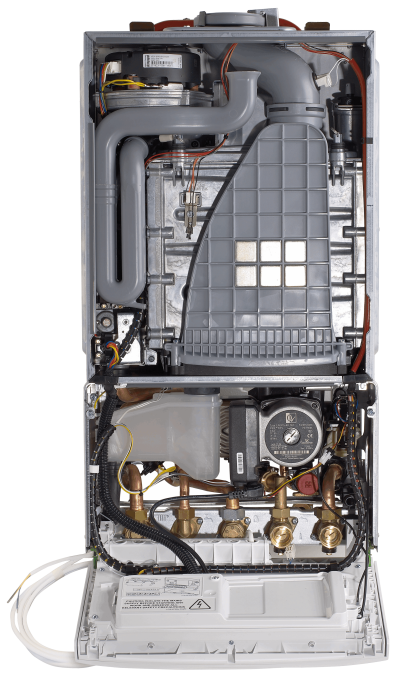

Greenstar CDi Compact overview
With an extended guarantee of up to 8 years, the high powered Greenstar CDi Compact is the perfect choice for an array of different sized properties with up to three bedrooms and two bathrooms.
Perfect for households with a high output demand, this combi boiler can fit into a standard kitchen cupboard and provides instantaneous hot water and.
A low-energy pump helps to reduce the boiler’s electrical consumption and contributes to its ErP A rating which progresses to an A+ rating for heating when used with our Bosch EasyControl.
Features & Benefits
|
8 year guarantee when installed with any Greenstar System Filter. 7 years as standard
|

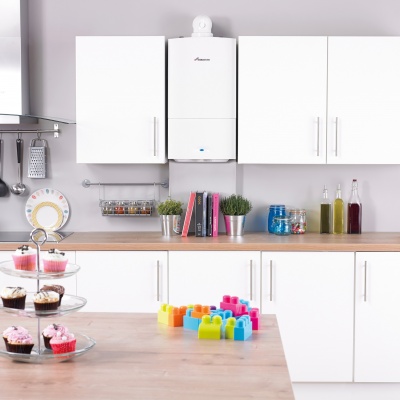

Fits in a standard kitchen cupboard
|
Wall-mounting jig providing pre-plumbing and rear piping as standard
|
|||
|

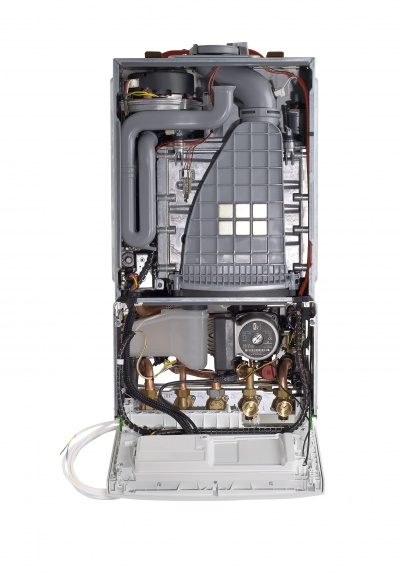

Highly reliable, efficient and innovative WB7 heat exchanger
|
Clear display for diagnostic, operational and commissioning information
|
Colour-coded wiring connectors for error free connections
|
|||
|
Bosch EasyControl, Greenstar Comfort and Sense controls match the guarantee of the boiler when installed at the same time
|
Collect 15 Greenstar Rewards points per installation
|
Scan and register the boiler using our free MyWorcester App
|
|||
Technical Details
| Greenstar 28CDi Compact | Greenstar 32CDi Compact | Greenstar 36CDi Compact | |
|---|---|---|---|
| Part number | 7 733 600 054 | 7 733 600 055 | 7 733 600 056 |
| ErP Efficiency Rating |
A
A
|
A
A
|
A
A
|
| ErP Data Sheet | ErP Data Sheet | ErP Data Sheet | ErP Data Sheet |
| LPG model available | |||
| Control Options | |||
| EasyControl Compatible | |||
| Solar Compatible | |||
| Central heating output (kW) | 24 | 24 | 24 |
| Dimensions (mm) height x width x depth | 690 x 390 x 280 | 690 x 390 x 280 | 690 x 390 x 280 |
| Show more | |||
*The Condensesure Siphon has been proven to be effective at preventing frozen condensate at -15°C for a sustained period of 48 hours. 32mm pipework must be used and should not exceed 3 metres in length
Manuals & Brochures
| Product Literature |
|---|
| Greenstar CDi Compact Combi ErP Installation and Servicing Instructions |
| Greenstar CDi Compact Combi ErP Operating Instructions |
Related Accessories
| Boiler Accessories | Part number | ||||
|---|---|---|---|---|---|
| CondenseSure | 7 716 192 746 | ||||
| Keyless Filling Link | 7 716 192 610 | ||||
| Flue Gas Heat Recovery Unit | 7 733 600 047 | Installation Manual | |||
| Vertical Pre-piping Assembly Kits | 7 716 192 713 | ||||
| Earth bonding strip | 7 716 192 686 | ||||
| Below boiler pipe cover | 7 716 192 608 | ||||
| Domestic hot water combi pre-heat accessory (now available) | 7 716 192 735 | ||||
| Greenstar Comfort wall mounting plate | 7 733 600 039 | ||||
| EasyControl Adapter | 7 736 701 560 |
| Flashing Kits | Part number | ||||
|---|---|---|---|---|---|
| Flat roof flashing kit (100mm & 125mm dia.) | 7 716 191 090 | ||||
| Pitched roof flashing kit (100mm & 125mm dia) | 7 716 191 091 |
| Flue | Part number | ||||
|---|---|---|---|---|---|
| Standard telescopic horizontal flue kit (100mm dia) | 7 716 191 0822 | WallHung | Gas | ||
| 1000mm extension kit (100mm dia.) | 7 716 191 083 | ||||
| 90º bend (100mm dia.) | 7 716 191 084 | ||||
| Short flue extension, 220mm (100mm dia) | 7 716 191 133 | ||||
| 2m flue extension (100mm dia.) | 7 716 191 172 | ||||
| High level horizontal flue adaptor (100mm dia) | 7 719 002 432 | ||||
| High level horizontal flue adaptor (125mm dia) | 7 719 002 433 | ||||
| Vertical BF kit (100mm) | 7 719 002 4302 | ||||
| Vertical BF kit (125mm) | 7 719 002 4312 | ||||
| 60/100mm (x2) 45º bends | 7 716 191 085 | ||||
| Horizontal flue kit (125mm dia.) | 7 719 003 7022 | ||||
| 1000mm extension (125mm dia.) | 7 719 003 666 | ||||
| 45 degree bend (80/125mm dia.) | 7 719 003 665 | ||||
| 90º bend (125mm dia.) | 7 719 003 664 | ||||
| Long telescopic flue kit (100mm dia.) | 7 716 191 171 | ||||
| Support bracket kit (100mm dia.) | 7 716 191 177 | ||||
| Support bracket (125mm dia.) | 7 716 191 179 | ||||
| Support bracket 6 pack (100mm dia.) | 7 716 191 178 | ||||
| High level horizontal telescopic 60/100mm flue kit | 7 733 600 0482 | ||||
| Standard Telescopic Flue & Terminal (White) | 7 716 191 082 | WallHung | Gas | Installation Manual |
| Plume | Part number | ||||
|---|---|---|---|---|---|
| 45º bend (x2) | 7 716 191 089 | ||||
| 90º bend | 7 716 191 088 | ||||
| Plume management terminal guard round (60mm dia.) | 7 716 191 176 | ||||
| Plume management kit (60mm dia) | 7 716 191 086 |
