Greenstar System Filters overview

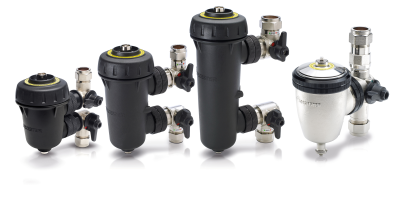

Our Greenstar System Filter range has been designed to combat the damaging effects of system debris and pollutants, allowing homeowners to protect their boiler or heat pump for a fraction of its cost.

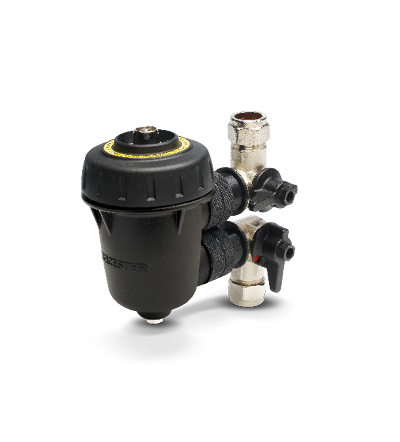

The new Mini System Filter offers the same features as the current range but in a more compact size.
The filters have a high powered internal magnet that can capture large amounts of magnetic debris
Features & Benefits
|
Magnetic and non-magnetic filtration to collect a wide range of system debris
|
Can be installed both under and over the boiler or remotely
|
One-way valve for ease of adding system chemicals
|
|
Isolation valve indicators to visually assist when isolating the filter
|
Over tightening prevention feature
|
Detachable body for ease of service and powerflushing
|
|
Drainage point at the bottom for ease of access during servicing
|
Technical Details
| Greenstar System Mini Filter | Greenstar System Filter 22mm | Greenstar Brass System Filter 22mm | Greenstar System Filter 28mm | |
|---|---|---|---|---|
| Part number | 7 733 600 266 | 7 733 600 236 | 7 733 600 476 | 7 733 600 237 |
| Dimensions (mm) height x width x depth | 155 x 182 | 209 x 180 | 167 x 146 x 85 | 279 x 183 |
| Effective volume of magnetic length | 21,974 mm3 | 36,500 mm3 | 17,000 mm3 | 55,000 mm3 |
| Canister size (with valves in closed position) | 350ml | 534ml | 321ml | 636ml |
